Leon & Cupra MK1 TYP 1M 4WD (1999-2005)

SKU
PF_BS_SEAT19
View options

  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical showroom

main product photo

Options

Take into account the amount required per car.

Grouped product items

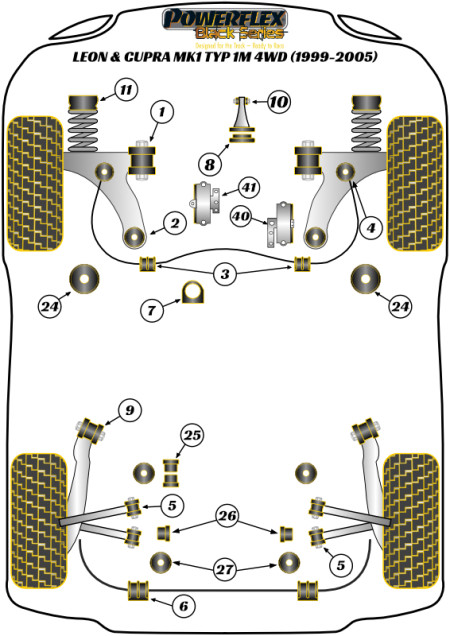

Quantity Product Amount required per car Ref. in diagram Art.no. Price
Front Wishbone (Cast) Front Bush 45mm Front Wishbone (Cast) Front Bush 45mm 2 1 PFF3-501BLK
€48.25
Front Wishbone (Cast) Front Bush 45mm Camber Adjustable Front Wishbone (Cast) Front Bush 45mm Camber Adjustable 2 1 PFF3-501GBLK
€86.31
Front Wishbone (Cast) Rear Bush Front Wishbone (Cast) Rear Bush 2 2 PFF3-610BLK
€51.69
Front Wishbone Rear Bush Front Wishbone Rear Bush 2 2 PFF85-410BLK
€52.48
Front Wishbone Rear Bush, Pattern Arm Front Wishbone Rear Bush, Pattern Arm 2 2 PFF85-410PABLK
€52.48
Front Wishbone Rear Bush (Track/Race) Front Wishbone Rear Bush (Track/Race) 2 2 PFF85-414BLK
€124.07
Front Anti Roll Bar Mount 18mm Front Anti Roll Bar Mount 18mm 2 3 PFF85-411-18BLK
€30.13
Front Anti Roll Bar Mount 21mm Front Anti Roll Bar Mount 21mm 2 3 PFF85-411-21BLK
€30.13
Front Anti Roll Bar Mount 23mm Front Anti Roll Bar Mount 23mm 2 3 PFF85-411-23BLK
€30.13
Rear Arm Inner Bush Rear Arm Inner Bush 4 5 PFR3-510BLK
€42.34
Rear Arm Inner Bush Camber Adjustable Rear Arm Inner Bush Camber Adjustable 4 5 PFR3-510GBLK
€77.96
Rear Anti Roll Bar Mounting 14mm Rear Anti Roll Bar Mounting 14mm 2 6 PFR3-511-14BLK
€30.13
Rear Anti Roll Bar Mount 15mm Rear Anti Roll Bar Mount 15mm 2 6 PFR3-511-15BLK
€30.13
Rear Anti Roll Bar Mount 16mm Rear Anti Roll Bar Mount 16mm 2 6 PFR3-511-16BLK
€30.13
Rear Anti Roll Bar Mounting 19mm Rear Anti Roll Bar Mounting 19mm 2 6 PFR3-511-19BLK
€30.13
Steering Rack Mount Bush Steering Rack Mount Bush 1 7 PFF85-416BLK
€38.13
Front Engine Mount Dog Bone (Motorsport) Front Engine Mount Dog Bone (Motorsport) 1 8 PFF85-420BLK
€53.32
Rear Trailing Arm Front Bush Rear Trailing Arm Front Bush 2 9 PFR3-508BLK
€60.11
Rear Trailing Arm Front Bush Toe Adjust Rear Trailing Arm Front Bush Toe Adjust 2 9 PFR3-508GBLK
€60.11
Lower Engine Mount Small Bush Lower Engine Mount Small Bush 1 10 PFF85-505BLK
€43.12
Front Strut Top Mount Bush Front Strut Top Mount Bush 2 11 PFF85-430BLK
€53.32
Front Strut Top Mount Bush -10mm Front Strut Top Mount Bush -10mm 2 11 PFF85-431BLK
€64.40
Front Subframe Rear Bush Front Subframe Rear Bush 2 24 PFF85-424BLK
€50.83
Rear Diff Front Mounting Bush Rear Diff Front Mounting Bush 2 25 PFR85-425BLK
€51.69
Rear Diff Rear Mounting Bush Rear Diff Rear Mounting Bush 2 26 PFR85-426BLK
€51.69
Rear Subframe Mounting Bush Rear Subframe Mounting Bush 4 27 PFR85-427BLK
€60.97
Upper Engine Mount Insert Upper Engine Mount Insert 1 40 PFF85-440BLK
€38.91
Upper Gearbox Mount Insert Upper Gearbox Mount Insert 1 41 PFF85-441BLK
€38.91

Details

PFF85-412 fit aluminium link rods. PFF85-413 fit plastic link rods. Neither fit link rods using ball joints.
For pressed steel front wishbones, please use PFF85-201 & PFF85-410.
For cast wishbones use, please PFF85-201 or PFF3-501 & PFF3-610.
PFF85-201 and PFF85-410 will NOT fit the Cupra R models.
On cast wishbones, the later vehicles have a larger 45mm bush. In this case, please use PFF3-501.
For earlier vehicles with a 30mm bush, please use PFF85-201.
PFF85-414 is a spherical bush for race use. It fits both pressed steel and cast wishbones.
